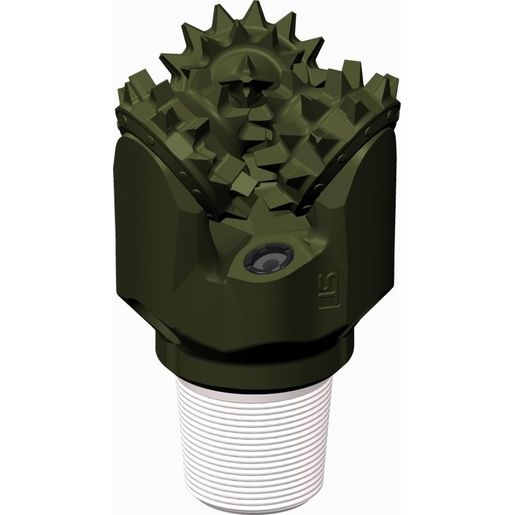

Xplorer Expanded bits are specifically designed to drill soft formations with exceptional ROP and reliability. With the proven Gemini Twin Seal system and the ultra-durable MIC2 hard metal, these bits deliver maximum ROP and long run times in a wide range of applications.
FEATURES:
- Spinodal 2 bearing with silver plated components ensures longer runs at higher ROP. This proprietary material offers maximum wear resistance and withstands extreme load forces for longer periods than conventional bearing materials.
- The Gemini twin seal system consists of a primary seal which protects the bearing, and a secondary seal that protects the primary seal. This dual seal system will perform reliably for extended periods of time in high RPM, heavier WOB, high mud weight and severe dogleg applications.
- HM16A hard metal material has been optimized to reduce wear, extend bit life and maximize ROP
- The Center Jet maximizes fluid flow, and increases ROP by cleaning the bit more effectively and reducing bit balling.
- The PS feature offers strategically placed clusters of semi round top (SRT) shaped carbide inserts that maximize leg protection, prevent bit wear, and substantially increase bit life in abrasive formations.
ID: 0065709060
IADC: 137
